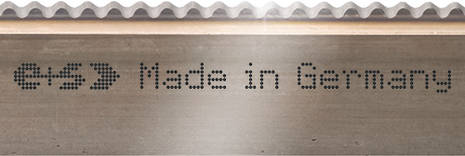

Edge hardened rotary cutting rule with a round teeth configuration, requiring less pressure than other rules, allowing faster machine speed and increasing life time of the anvils blankets. Universal use for thin up to heavy corrugated boards. Available in 8; 10 and 12 tpi.

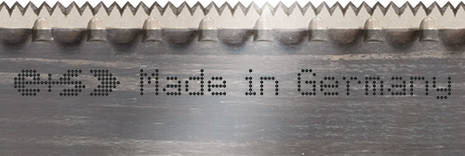

Basic rule for all rotary die cutting applications. Available in 8; 10; 12; 16 and 20 tpi in side and centre serration

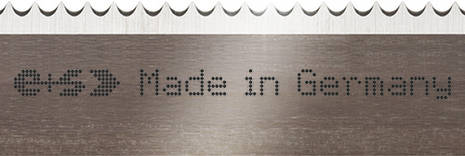

Due to its very sharp bevel, this solid rule penetrates material easily, and is especially recommended for thicker corrugated board grades.

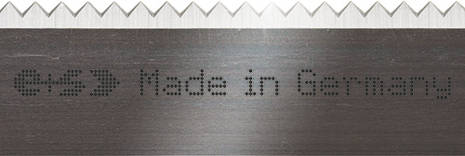

To round up Rotary Cutting Rules, this product enables alternative applications. It is equipped with lateral ground teeth and centred bevel. The diecutting result is a slight wave and it can be used as a Safety Edge Rule, in order to avoid cuts in the fingers.

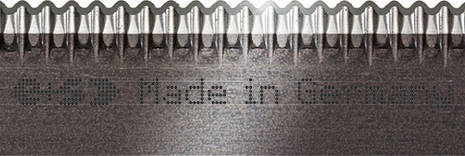

Rule developed to minimize liner burst on corrugated board. At the same time the particular tooth shape provides excellent stripping results. Standard: side serration.

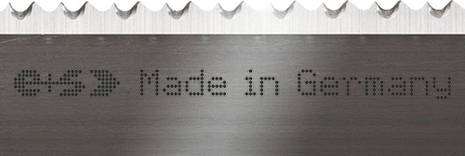

This very aggressive edge hardened bevel shape penetrates corrugated boards easily. The comparatively long bevel with round gullet in the tooth and maximum sharpness requires slightly higher rule height than usual. It is recommended to set this rule with caution so as not to damage the teeth.

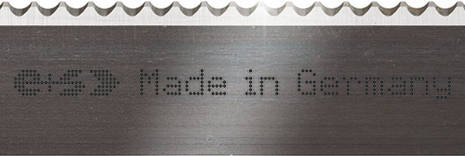

All standard wavings can be produced from the different rotary rules available. An unwritten rule: the finer the waves the finer the teeth. As long as there are no different indications, production will be made from Serrated Rules.
